The Blackmagic 2110 IP Converter 3x3G represents a cutting-edge solution, enabling two-way conversion between SDI and IP video formats. This device is notable for its capacity to simultaneously process three separate video channels through its 10G Ethernet connection.
Each channel is uniquely provisioned with its own SDI inputs and outputs, providing the flexibility to connect with up to six different SDI devices. A key feature of this converter is that every 3G-SDI input includes a loop output, ensuring smooth integration with existing SDI setups. Moreover, the converter boasts a reference output, which is meticulously timed to align with the 2110 PTP clock.

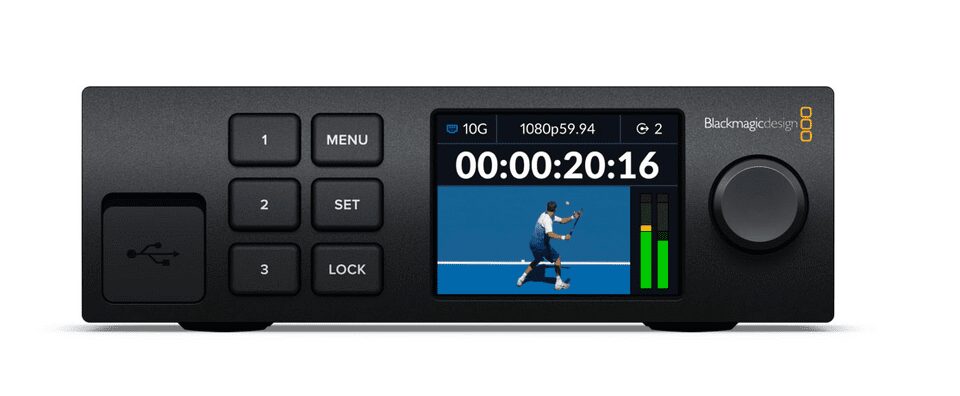

The converter’s front panel is elegantly designed, featuring a color LCD that provides monitoring, menu navigation, and diagnostic tools. Users can also route IP inputs directly from this panel.
Integration into Broadcast Systems
Designed for seamless integration into 2110 IP broadcast systems, the Blackmagic 2110 IP Converter 3x3G is rack-mountable. This design allows for easy installation alongside existing broadcast equipment. The Universal Rack Shelf accommodates up to three of these converters side by side, offering a total of nine input and output channels in a single rack unit. Remote management over Ethernet is also supported, making this converter a versatile solution for various broadcast needs.
Compact and Efficient Design
The Blackmagic 2110 IP Converter 3x3G offers a compact, rack-mountable design. Unlike multiple mini converters, this single unit includes a front panel with an LCD for easy on-site settings adjustments and live video monitoring of all input and output channels. The LCD also assists with network diagnostics and includes routing menus for IP source selection. The device features active fan-based cooling for reliable operation, even when multiple units are mounted together. For added reliability, the converter supports both AC and PoE+ Ethernet power.
Compatibility with 3G‑SDI Equipment
This converter supports three 3G-SDI outputs and inputs, each with loop outputs. The 10G Ethernet connection accommodates three separate input and output channels, capable of handling various video standards independently. Each 3G-SDI input includes re-sync, ensuring compatibility with any SDI source. The converter also provides a reference output for locking external SDI equipment to the 2110 PTP clock.
Adherence to SMPTE 2110 Standards
The Blackmagic 2110 IP Converter conforms to the SMPTE ST2110 standards, which are crucial for IP video transport in broadcast environments. It supports various SMPTE-2110 sub-standards for video, audio, and ancillary data, and is capable of multicast distribution.
NMOS Protocol Support
The converter’s compatibility with the NMOS interface specifications allows for operation within a virtual router setup. It supports IS-04 and IS-05 standards for discovery, registration, and connection management of IP video devices.
Remote Administration Capabilities
Remote administration is vital for large broadcast systems, and the Blackmagic 2110 IP Converter 3x3G facilitates this with its Blackmagic Converter Utility software. This software is available for both Mac and Windows and can be accessed via USB or Ethernet for remote management.
Support for Diverse Video Formats
The converter is versatile, supporting various SD and HD formats up to 1080p60. This includes both standard definition formats (525i59.94 and 625i50) and a range of high definition formats (720p up to 1080p60).
Exceptional Video Quality
The Blackmagic 2110 IP Converter ensures top-notch video quality by supporting 10-bit video, which is essential for high-quality green screen keying, crisp titles, and superior color correction. It also includes SDI re-clocking for optimal signal transmission.
Flexible Power Options
The rack-mountable design of the converter includes a built-in AC power supply, eliminating the need for external power bricks. It supports a wide AC voltage range and includes PoE+ for redundancy.
Multilingual Support
To cater to a global audience, the Blackmagic 2110 IP Converter 3x3G supports multiple languages in its menus, including English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish, and Ukrainian.
In summary, the Blackmagic 2110 IP Converter 3x3G is a comprehensive solution for converting between SDI and 2110 IP video systems, offering versatility, high-quality video support, and convenient integration into broadcast infrastructures.
