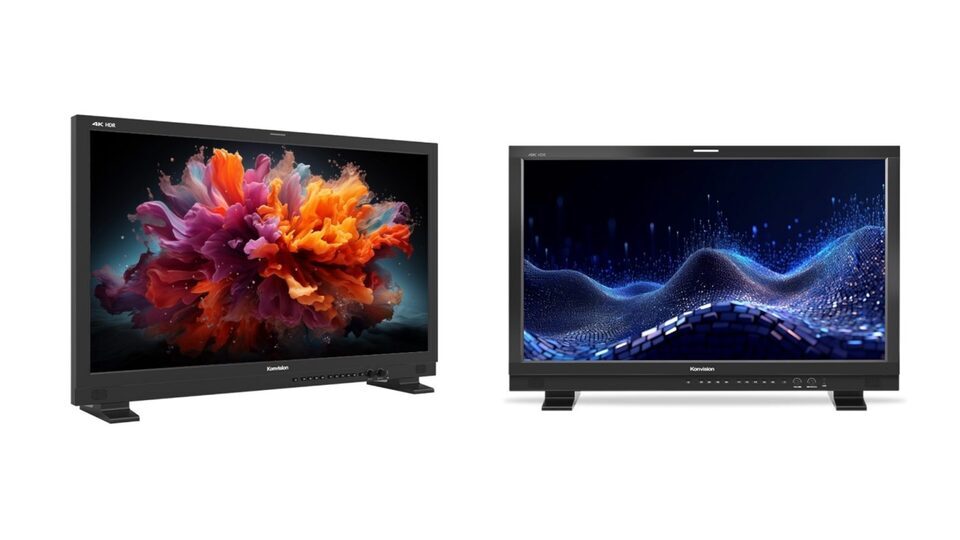

Konvision expands its professional mastering monitor lineup with two 32-inch 4K HDR models based on QD-OLED and Mini-LED technologies.
Both displays target UHD and HD production, shooting, and post-production environments.

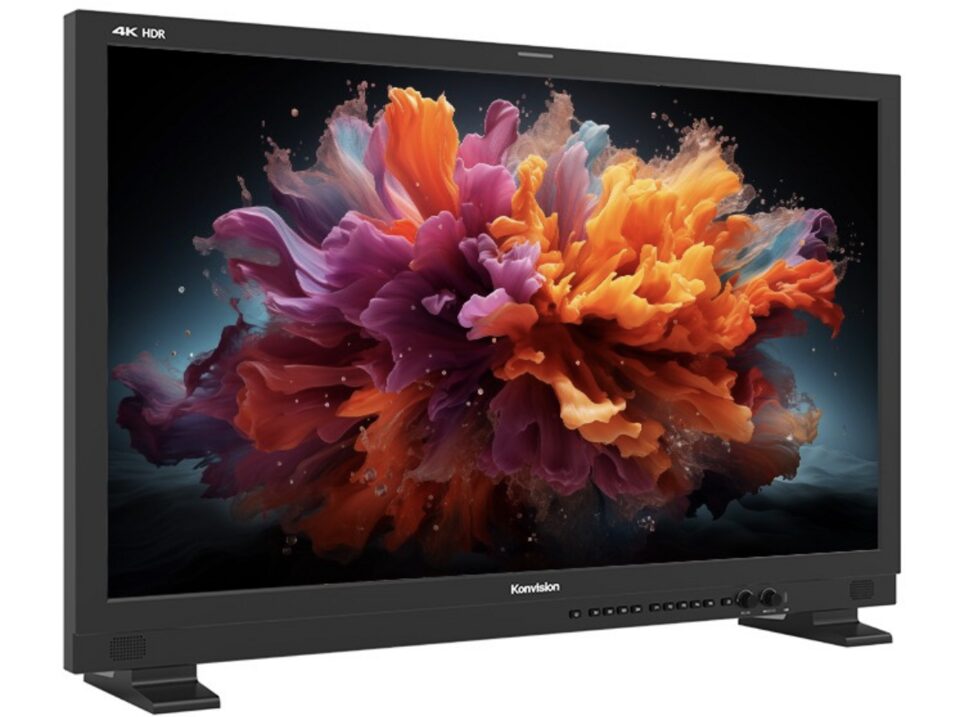

QD-OLED Model: KXM-3210S
The KXM-3210S uses a 31.5-inch QD-OLED panel with 3840×2160 resolution, 1000 nits peak brightness, 1,500,000:1 contrast, and at least 80% BT.2020 color gamut coverage. HDR formats include HLG and ST2084 PQ.

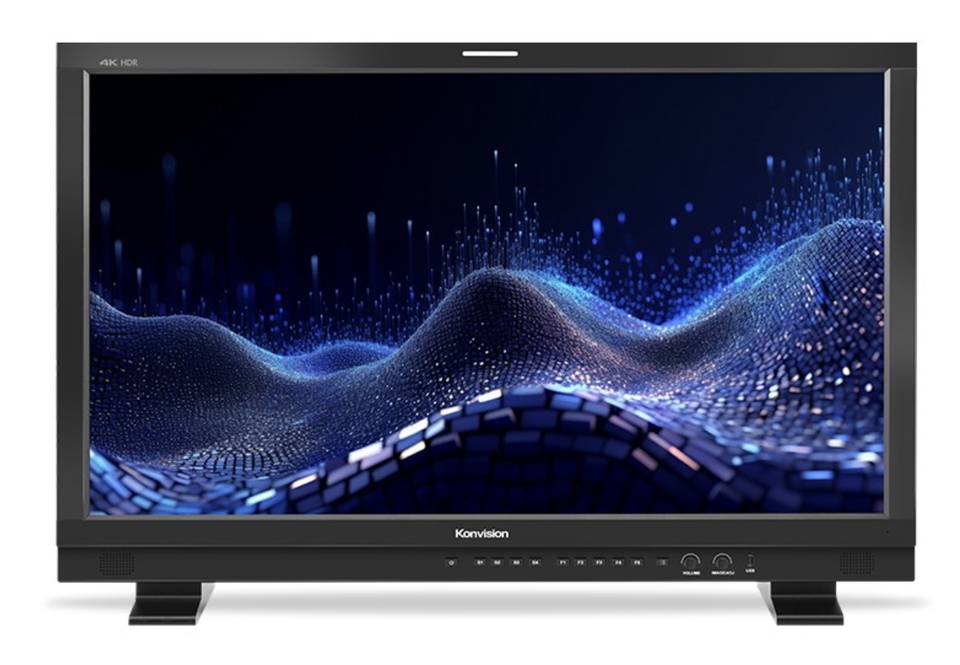

Mini-LED Model: KXM-3210M
The KXM-3210M features a 32-inch IPS LCD panel with Mini-LED full-array backlight and 2304 local dimming zones. Specifications include 1500 nits peak brightness, 1,000,000:1 contrast, and ≥80% BT.2020 coverage with HLG and PQ HDR support.
Signal Connectivity and Processing
Both monitors support dual 12G-SDI input and loop-out, quad-link 3G-SDI up to 4K60p, HDMI 2.0, and SFP+ optical interfaces. Internal processing supports 12-bit video, zero-latency display, and 4K HDR to HD/2K SDR down-conversion.
Color Management and Calibration
The displays support 3D LUT calibration via ColourSpace and Calman. Supported color spaces include Rec.709, EBU, DCI-P3, DCI-P3 D65, and Rec.2020. Multiple gamma curves and automatic VPID/Payload ID recognition are included.
Monitoring and Assist Tools
Integrated tools include waveform, vectorscope, histogram, CIE diagrams, false color, zebra, focus assist, HDR analysis, audio meters, timecode display, tally, closed captions, and quad-view monitoring with independent settings per window.
