Nauticam Unveils Underwater Housing for RED Komodo Cinema Camera

The RED Komodo camera, renowned for its 6K Super 35 sensor, 16 stops of dynamic range, and global shutter, is now paired with the Nauticam underwater housing.

Offering 6K resolution and recording in R3D files directly to CFast 2.0 cards, the Komodo provides professional-level specs in a travel-friendly package.

Key Camera Specifications:

  • 6K Super 35 Sensor (6144 x 3240)
  • Records to CFast 2.0 cards
  • Canon RF Lens Mount
  • Global Shutter Mode
  • Wireless Control From a Smartphone
  • Anamorphic Options
  • ProRes 422/ProRes 422HQ recording options

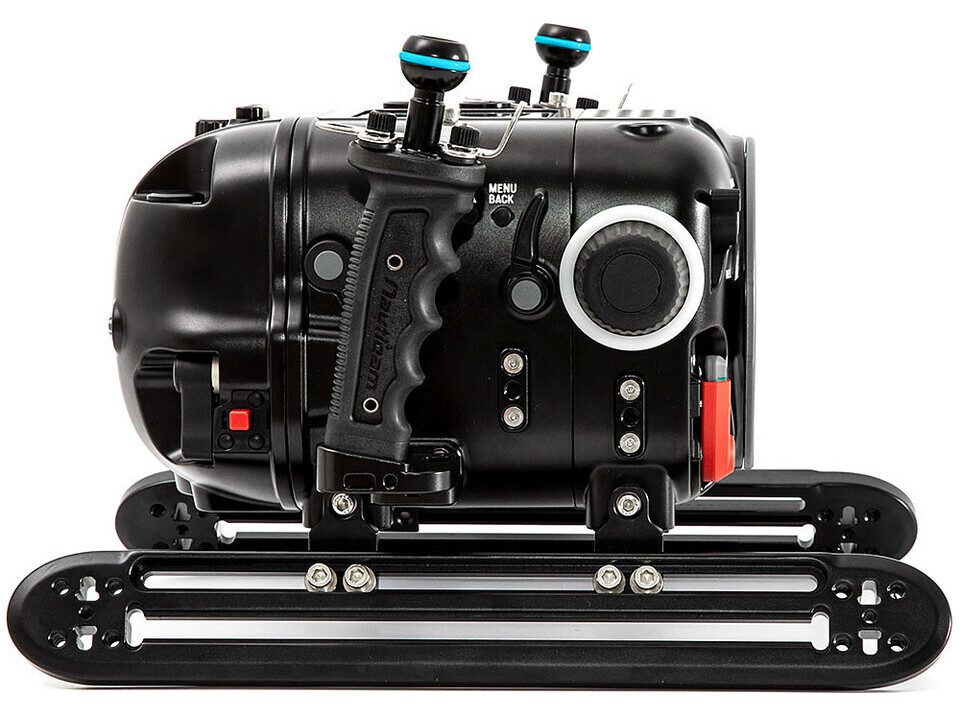

Nauticam Komodo Housing: RED APPROVED and User-Friendly
Engineered for compactness and travel-friendliness, the Nauticam Komodo housing seamlessly integrates DSLR lenses, utilizing the N120 port system. Its user-friendly design allows for tool-less setup and teardown in minutes, with easy battery swaps and quick lens changes.

Lens Support
Full support for Canon EF lenses with the Canon EF to EOS R Adaptor. Ready for future compatibility with RF lenses. Supports Cinema Lenses with the 16410 N120 to N200 Port Adapter.

Internal and External Monitor Options
Utilize the built-in monitor or opt for the Atomos Shinobi SDI monitor for additional monitoring. External monitor support is enhanced with the Nauticam NA-Shinobi-S housing.

SDI Output and Accessories
SDI output supported with required accessories. Recommended monitor housings include NA-502B-S for SmallHD 502 Bright Monitor and NA-Shinobi-S for Atomos Shinobi 5.2″ 4K HDMI Monitor.

Battery Compatibility
 Supports Canon BP-955/975 batteries. The housing accommodates up to two batteries without removing the camera, ensuring easy battery changes.

Ethernet Remote Control
Enables full camera control with 5m (pole cam) and 45m (studio) Ethernet surface feed. Supports the RedControl App for convenient remote operation.

Vacuum Check and Leak Detection System
 Features Nauticam’s Vacuum Check and Leak Detection System for constant updates on housing’s watertight status. Temperature-compensated system eliminates false alarms.

Noteworthy Features:

  • Patented Port Locking Lever
  • Oversized mechanical zoom and focus knobs
  • Tripod and skid mounting points
  • Cinema accessories, including trim weights for precise buoyancy control
  • Monitor Back option for Atomos Shinobi SDI Monitor

What’s In The Box:

  • Komodo Housing
  • M16 Vacuum Valve II
  • Handles with mounting balls
  • Monitor Shade (Shinobi monitor back only)
  • Padded Travel Case
  • Allen Wrench Set
  • Housing Skids
  • Wheeled Case with Custom fit foam insert

Recommended Accessories:

  • Housing Mounting Ball
  • Strobe Mounting Ball
  • Trim Weights
  • Spare/Replacement SDI Cable

Specifications:

  • Standard Housing Dimensions: 254mm (W) x 158mm (H) x 246mm (D)
  • Housing with Shinobi Back Dimensions: 254mm (W) x 158mm (H) x 324mm (D)
  • Weight in Air (Standard Housing): 4.0 kg
  • Weight in Air (Housing with Shinobi Back): 4.9kg
  • Depth Rating: 80m/260ft
  • Port Opening: N120 Cinema

News source: https://www.backscatter.com/Nauticam-Red-Komodo-6K-Underwater-Cinema-Housing-Standard-Back-Version
