Portkeys HD7H: 7-Inch Monitor with Professional Tools

Specifications

• Display: 7-inch, 8-bit panel with a resolution of 1280 x 720 and a contrast ratio of 1000:1.
• Brightness: Maximum brightness of 1,000 nits.
• Inputs/Outputs: 1 HDMI input, 1 3.5mm audio output, 1 AV input.
• Audio: Built-in loudspeaker.
• Resolution Support: Maximum input resolutions up to 4K DCI at 24p or 4K UHD at 30p.
• Monitoring Tools: Includes professional tools like Luma Histogram, False Color, and Peaking.
• Anamorphic De-Squeeze: Supports 1.33x, 1.5x, 2.0x, and custom aspect ratios from 0.25 to 4.0x.
• Power Supply: Powered by a single Sony NP-F style battery or a 5.5mm barrel connector with 7.4V-24V input. Low power draw of only 10W.
• Build: Lightweight and durable housing made of ABS and PC, weighing 278g (9.8oz).

Design and Build

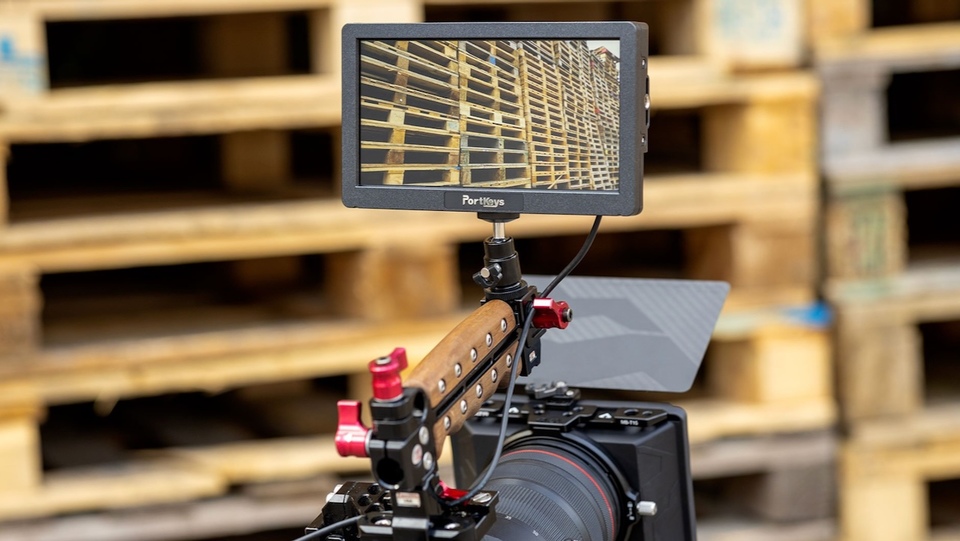

The monitor, which weighs 278g and measures 178 x 104 x 25.8mm, is suitable for use with mirrorless hybrid or small digital cinema cameras.

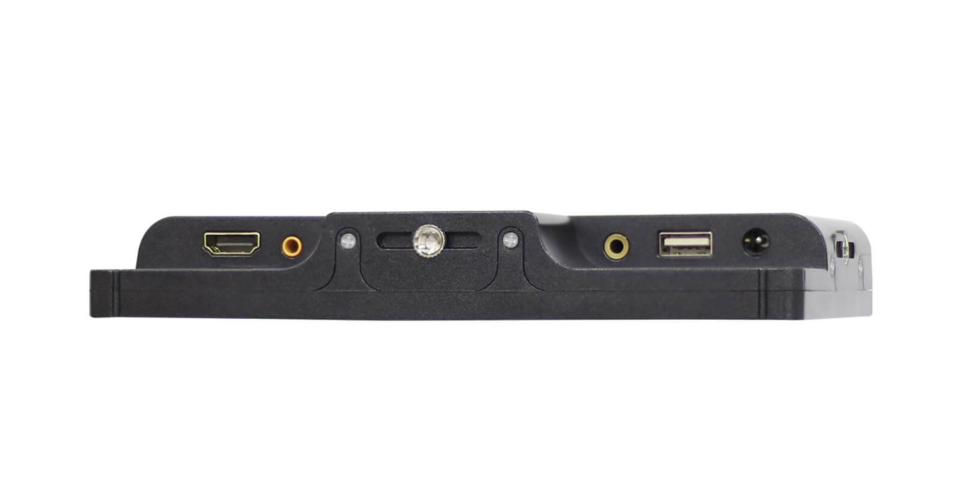

At the bottom, it features a full-size HDMI input and an AV input port that doubles as a 3.5mm audio input. There is also a 3.5mm headphone jack, a USB Type-A port for firmware upgrades, and a DC 7-24V power input with a 5.5mm barrel connector.

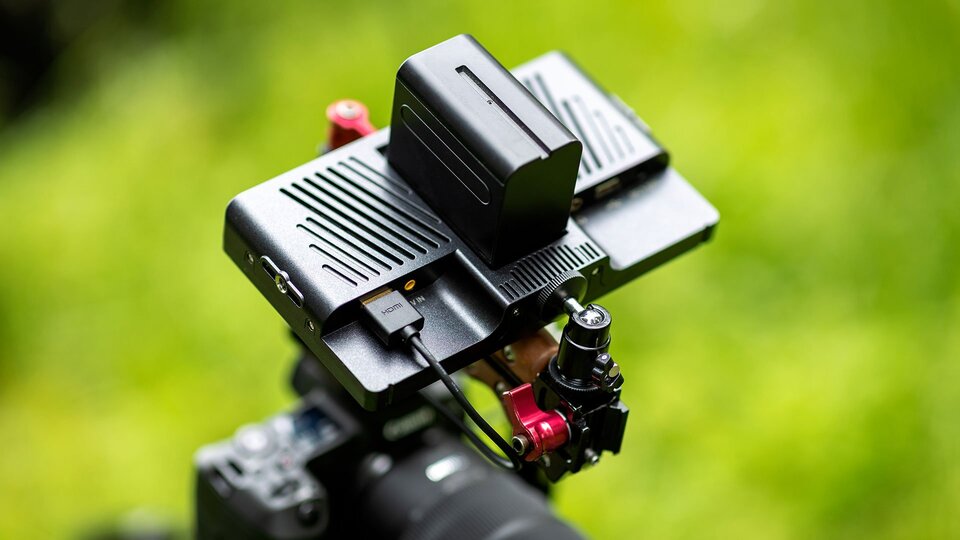

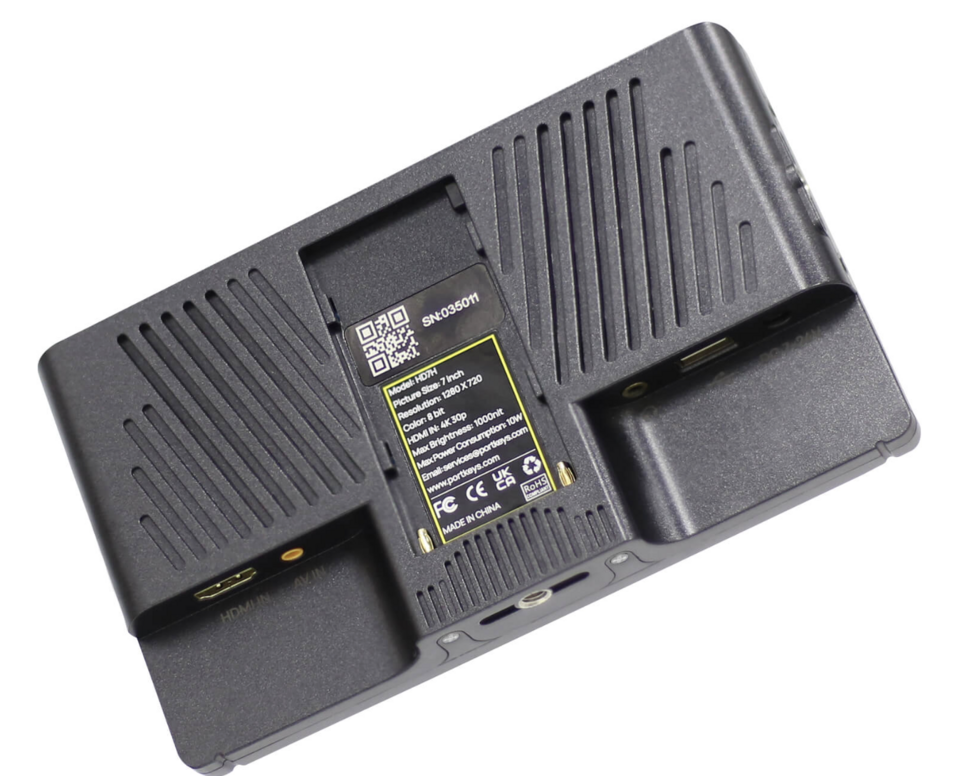

The back of the monitor houses a built-in Sony NP-F-style battery plate. With its low power consumption of 10W, a Sony NP-F750 battery can power the monitor for up to 10 hours at full brightness. The built-in speaker allows for audio playback during footage review.

User Interface and Controls

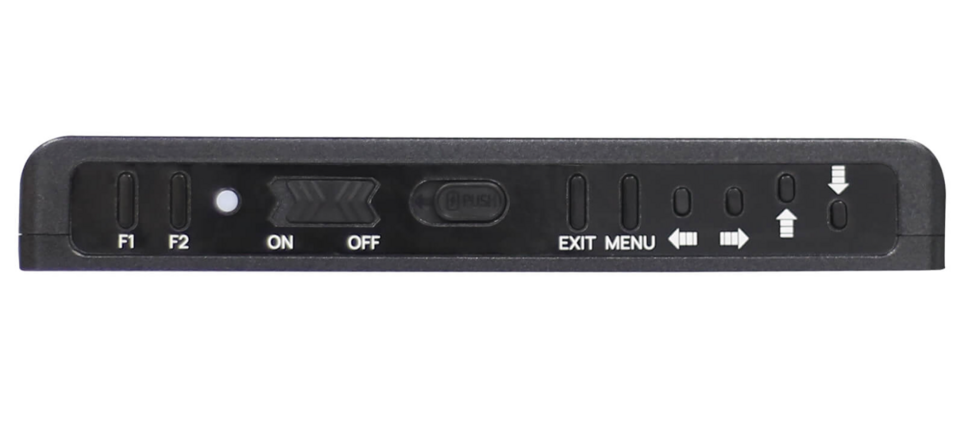

The top of the monitor includes two user-assignable buttons for quick access to preferred monitoring tools, as well as the power switch, battery eject button, menu, and navigation controls.

For mounting, there are three 1/4″-20 mounting points located on the bottom, left, and right sides of the monitor.

Monitoring Tools

The Portkeys HD7H provides several video assist tools:

• Peaking with an enhanced algorithm for precise manual focusing.
• Picture zoom.
• Anamorphic image de-squeeze with standard and custom ratios.
• Exposure assist tools like Luma Histogram and False Color.
• Grids, crosshair, check field, guides, and clip guides.
• Image flip modes: vertical, horizontal, display flip, and OSD flip.
• Image adjustment settings: contrast, sharpness, tint, chroma, color temperature, brightness, and backlight.
• Function setting.



Included Accessories

The monitor comes with a sunshade, side rubber covers for protection, a monitor mount, full-size HDMI and HDMI to micro-HDMI cables, and an AV cable.

About Portkeys

Portkeys is a high-tech enterprise specializing in the development, production, and sales of high-definition camera monitors, electronic viewfinders, and multifunctional camera handles. Founded in 2015, the company is known for providing professional, cost-effective monitoring solutions tailored for the film, broadcasting, and photographic industries.
