The camera features an S35 35.4 Megapixel CMOS sensor with dimensions of 26.21 mm x 13.82 mm and you can use it with lenses that cover up to a 29.63mm image circle.
The camera features an S35 35.4 Megapixel CMOS sensor with dimensions of 26.21 mm x 13.82 mm and you can use it with lenses that cover up to a 29.63mm image circle.
The sensor is actually a little bit smaller than the 27.99 x 15.75 mm sensor that is used in the ARRI ALEXA 35. RED claims the camera has 16.5 stops of dynamic range.
The V-RAPTOR S35 features an integrated RF mount and it is also compatible with Canon RF to EF mount adapters. With an RF mount, you can also use a variety of adapters to put various different lenses on the camera. Again, it is interesting to see RED bringing out RF mount high-end digital cinema cameras and not Canon.

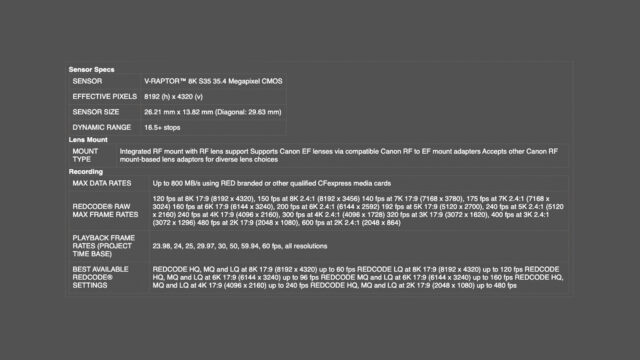

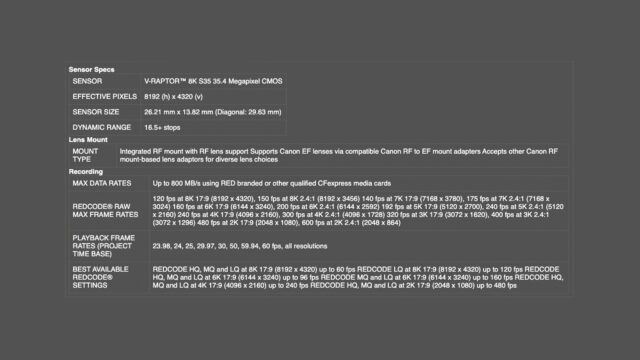

The camera is capable of recording in the following resolutions and framerates:
- 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
- 140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
- 160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
- 192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
- 240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
- 320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
- 480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
The camera comes in the exact same body as the V-RAPTOR and features all of the same inputs and outputs.
