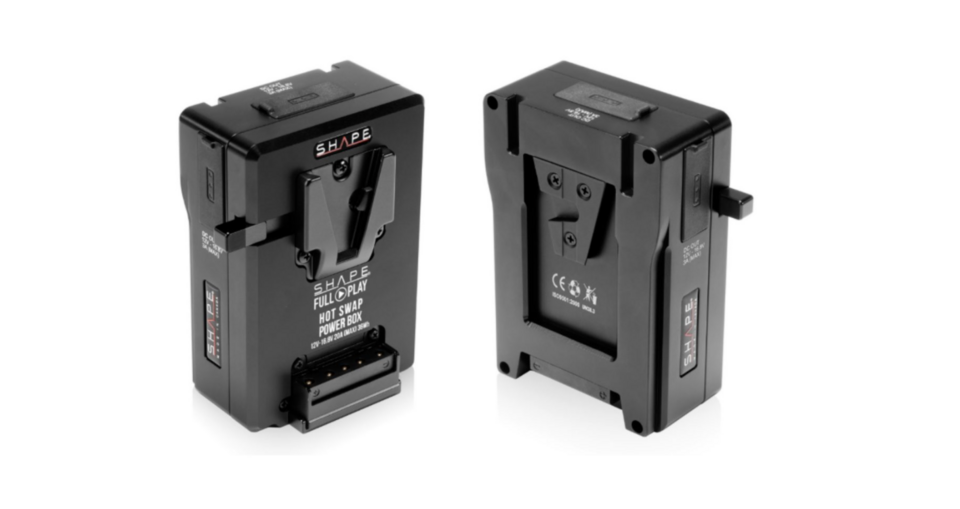

SHAPE Hot Swap Battery: V-Mount, 14.4V, 36Wh, Multiple Ports

The 14.4V, 36Wh battery is equipped with a hot swap function, ensuring seamless power transitions during battery changes.

Key Features

• Hot Swap Functionality: This V-Mount to V-Mount Power Box allows for continuous power supply without interrupting the operation.
• Battery Type: Utilizes a rechargeable Li-Ion battery compatible with standard V-Mount chargers and can also be charged via the D-Tap port.
• Ports: Features two Twist D-Tap and two LEMO 2-pin ports for powering additional devices. This offers flexibility in connecting accessories directly.

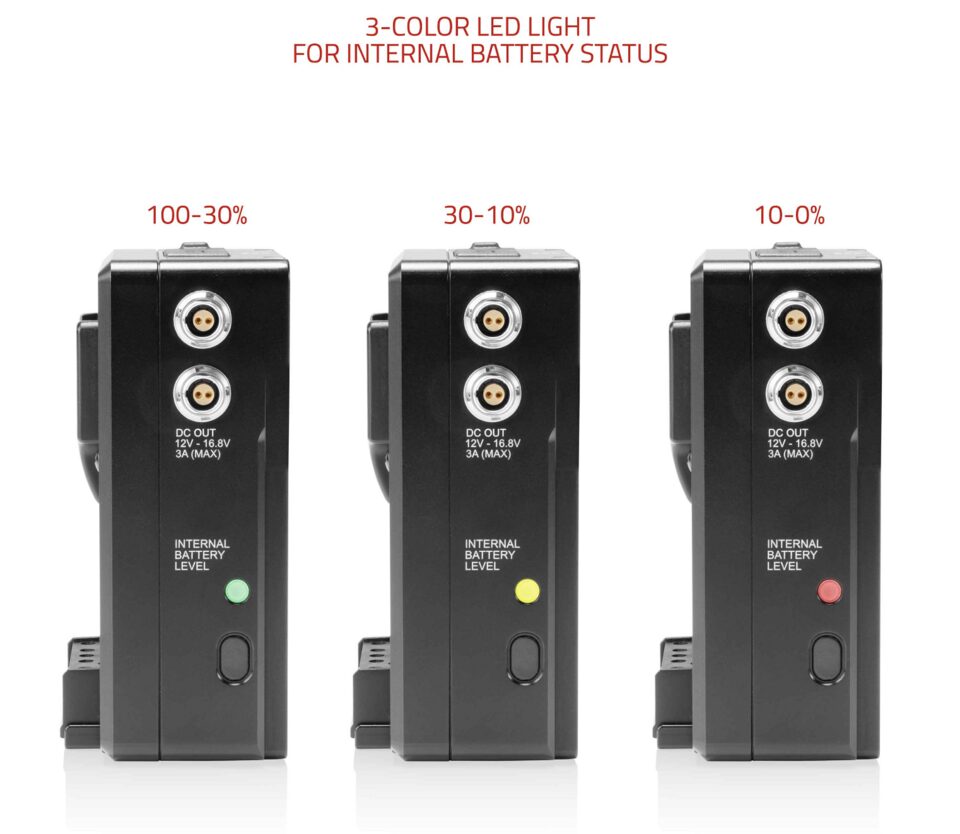

• LED Indicators: Includes a 3-color LED light system (Red, Yellow, and Green) for easy monitoring of internal battery levels.
• Built-In Safety Features: Equipped with high-precision voltage detection, delay circuits, and integrated balancing switch to maintain cell voltage consistency. It also includes low-temperature charging protection and under-voltage load lock functions.

Specifications

• Capacity: 2500 mAh, 36Wh
• Nominal Voltage: 14.4V
• Voltage Range: 12-16.8V
• Charging Voltage: 16.8V
• Charging Current: Max 3.5A
• Discharge Current: Max 20A
• Outputs:
  • Main BP Output: 12-16.8V, 20A (Max)
  • Twist D-Tap Output: 12-16.8V, 3A (Max)
  • LEMO 2-pin Output: 12-16.8V, 3A (Max)
• Operating Conditions:
  • Temperature: -40°~50°C
  • Humidity: 90-95% (Max)
• Dimensions: 4.4 x 3.4 x 2 in / 112 x 87 x 51 mm
• Weight: 1.2 lbs. / 550g

Availability and Pricing

The SHAPE Hot Swap V-Mount Power Box Battery 14.4V 36Wh is currently available for purchase at a price of $395.12 USD.

This battery solution is targeted at professionals seeking reliable power management for their camera setups.
