Shimbol Memory 7 Pro: In-Depth Technical Review and Advantages

Image source: Shimbol

The Shimbol Memory 7 Pro is designed to cater to the demanding needs of video professionals, offering a blend of advanced features and practical usability.

This review delves into the technical specifications, advantages, and potential drawbacks of the Memory 7 Pro, and provides a comparison with similar models in the market.

Shimbol Memory 7 Pro
Key Specifications
  • Screen Size: 7 inches
  • Resolution: 1920 x 1080
  • Brightness: 2200 nits
  • Input/Output: HDMI, 3G-SDI
  • Battery Type: Dual NP-F Series or DC power
  • Weight: 350 grams
  • Operating Temperature: -20°C to 55°C
  • Contrast Ratio: 1800:1
  • Viewing Angle: 170°
Image source: Shimbol
Advantages
  1. High Brightness: With 2200 nits, the Memory 7 Pro offers excellent visibility even in bright daylight, making it ideal for outdoor shoots.
  2. Full HD Resolution: The 1920 x 1080 resolution provides sharp and detailed images, crucial for focusing and framing.

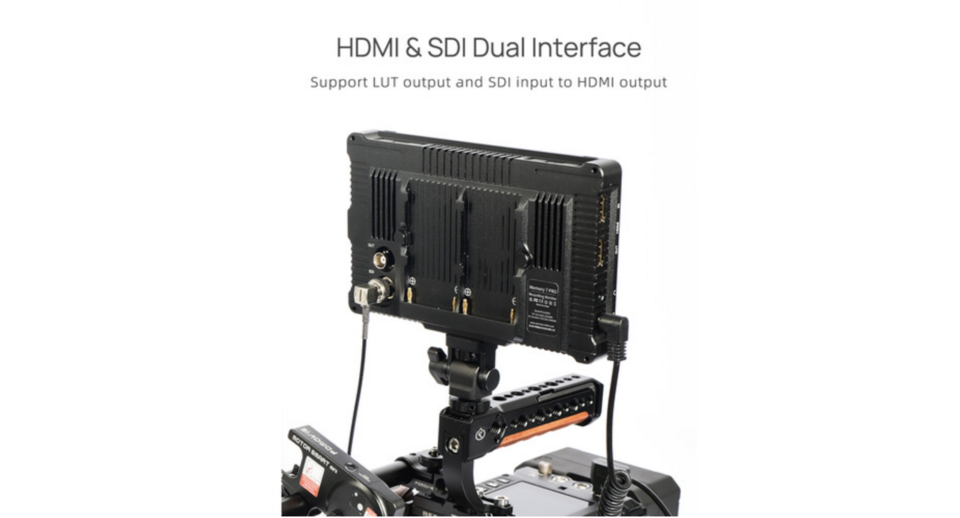

  3. Multiple Inputs and Outputs: HDMI and 3G-SDI inputs and outputs ensure compatibility with a wide range of cameras and other equipment.

    Image source: Shimbol
  4. Lightweight Design: At 350 grams, it is lightweight and easy to mount on cameras or rigs without adding significant weight.
  5. Wide Operating Temperature Range: Suitable for various environments, from cold to hot conditions.
  6. Professional Color Calibration: Supports DCI-P3 color gamut, ensuring accurate color representation.
Image source: Shimbol
Disadvantages
  1. Battery Life: The use of Sony NP-F Series batteries can limit operational time, requiring multiple batteries for long shoots.
  2. Boot Up Time: Takes around 15 seconds to boot up, which can be considered slow for some users.
Technical Details: Display Characteristics
  1. Color Accuracy: The Memory 7 Pro provides excellent color accuracy with support for the DCI-P3 color space and professional calibration.
  2. Viewing Angles: The wide viewing angles (170°) ensure that the image remains clear and consistent from different positions.
  3. Anti-Reflective Coating: The screen has an anti-reflective coating that reduces glare and reflections, enhancing visibility in bright environments.
Comparison with Competitors

Comparing the Shimbol Memory 7 Pro with similar monitors such as the Atomos Shinobi 7 and SmallHD 702 Touch, the following differences can be noted:

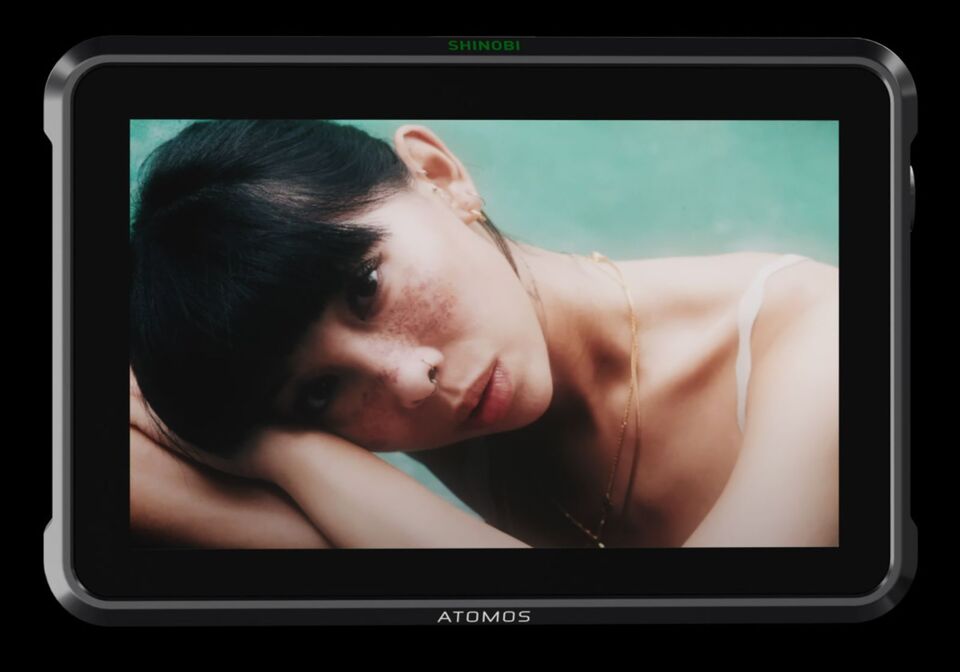

  • Atomos Shinobi 7: This monitor offers similar brightness (2200 nits) and resolution but includes a touchscreen, making navigation easier. It is slightly heavier and more expensive.

    Image source: Atomos

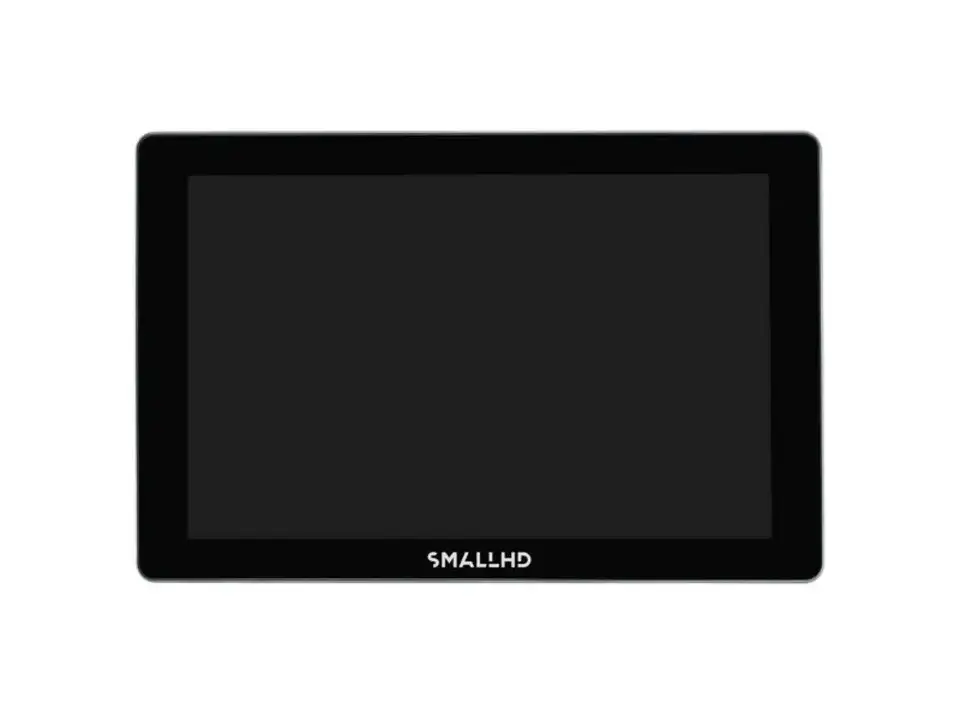

  • SmallHD 702 Touch: Known for its robust build and high-quality display, the SmallHD 702 Touch offers excellent color accuracy and touchscreen capabilities. However, it is significantly more expensive and heavier than the Shimbol Memory 7 Pro.

    Image source: SmallHD
Practical Usage and Features

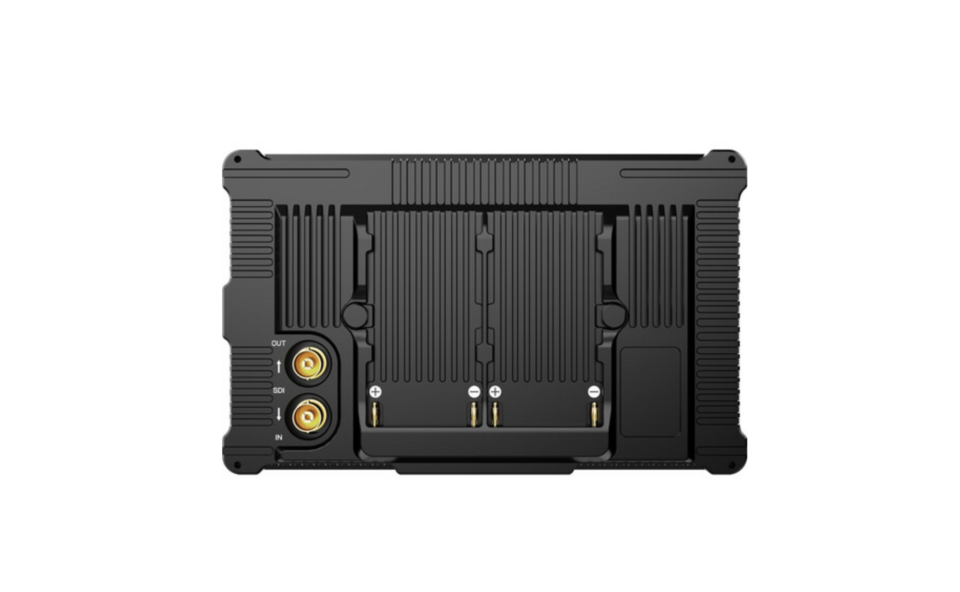

  1. Mounting Options: The Shimbol Memory 7 Pro comes with multiple mounting options, including 1/4″-20 threads on the bottom and right side, allowing for flexible rigging solutions.

    Image source: Shimbol
  2. Power Options: Besides the Sony NP-F Series batteries, the monitor can be powered via a DC input, providing versatility in power sources during shoots.

    Image source: Shimbol
  3. Focus and Exposure Tools: The monitor includes essential tools such as focus peaking, false color, and zebras, aiding in precise focusing and exposure settings.

The Shimbol Memory 7 Pro is a versatile and high-performance monitor suitable for professional videographers and cinematographers. Its high brightness, excellent resolution, and lightweight design make it an excellent choice for outdoor and on-the-go shooting. Despite the relatively slow boot-up time, its color accuracy and multiple input/output options provide significant advantages.
