SWIT has introduced its new CIMO series V-mount batteries, which boast high capacity, versatility, and robust performance.

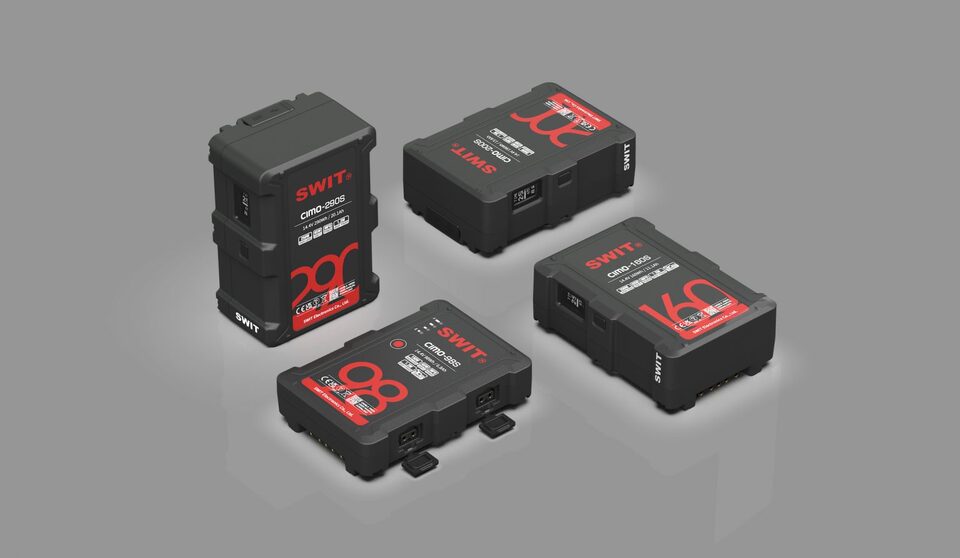

The series includes four models: CIMO-98S, CIMO-160S, CIMO-200S, and CIMO-290S, each designed to meet different power requirements.
Model Specifications
CIMO-98S: 98Wh, 6.8Ah
CIMO-160S: 160Wh, 11.1Ah
CIMO-200S: 196Wh, 13.6Ah
CIMO-290S: 290Wh, 20.1Ah
Image source: SWIT
Each model operates at a rated voltage of 14.4V (11V-16.8V), ensuring stable and reliable power output for a variety of devices, including cameras and LED lights.

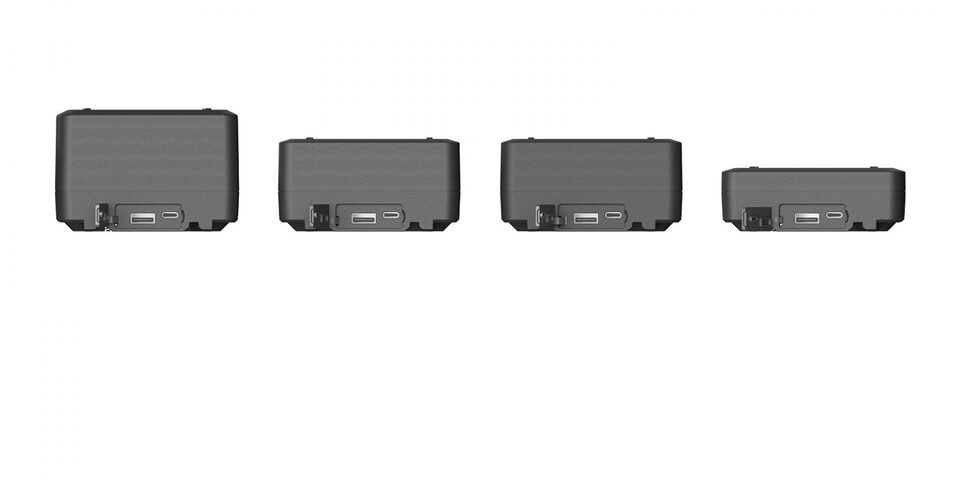

Key Features
Battery Terminal: Supports 150W (12A) to 250W (20A) discharge power.
D-TAP Interface: Capable of 150W (12A) to 250W (20A) discharge and 16.8V charging up to 6A.
TYPE-C Interface: Offers 65W maximum output and supports multiple protocols, including BC1.2, QC2.0/3.0, FCP, SCP, and PD2.0/3.0. Charging capabilities range from 5V to 20V up to 3.0A.
USB-A Interface: Provides 18W maximum output, supporting BC1.2, QC2.0/3.0, and FCP protocols.
Image source: SWIT
Durability and Safety
The CIMO series ensures continuous power supply even in extreme conditions, featuring a comprehensive safety protection system that covers temperature, voltage, and current. The modular structural design enhances durability, and an integrated LED display shows real-time information on battery status, including charge and discharge levels and overall battery health.
Image source: SWIT
Power Management
The CIMO batteries automatically enter an ultra-low power consumption mode after being idle for a long time. Pressing the button returns them to normal mode, effectively preventing battery drain and extending battery life.
Flexible Usage

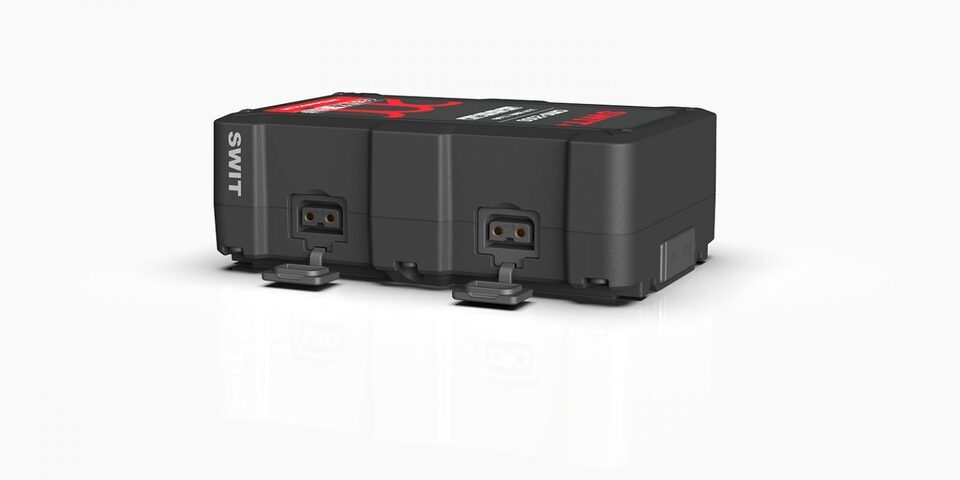

Multiple output interfaces, including D-tap and USB-C, allow for flexible usage, enabling users to power various devices from cameras to mobile phones and high-power lights.
Image source: SWIT
Pricing and Availability
The new SWIT CIMO series V-mount batteries are now available at the following prices:
CIMO-98S: $249 USD
CIMO-160S: $449 USD
CIMO-200S: $559 USD
CIMO-290S: $749 USD
About SWIT
SWIT Electronics Co., Ltd., established in 1996, specializes in developing and manufacturing products for the broadcast and film industry. Their product range includes HD video monitoring, conversion and transmission systems, broadcast camera power solutions, and both on-camera and studio lighting. Headquartered in Nanjing, China, SWIT also has offices in Neuss, Germany, and California, USA.
