The ATTO ONE is designed to be used with gimbals, camera rigs, or anything else that need power.
The ATTO ONE is designed to be used with gimbals, camera rigs, or anything else that need power.

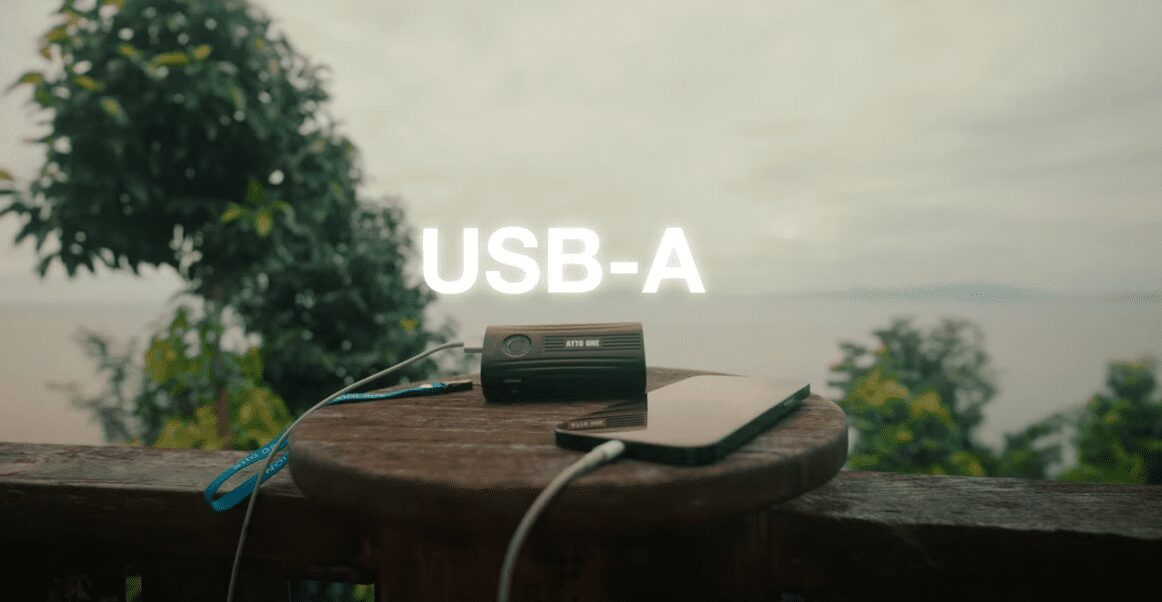

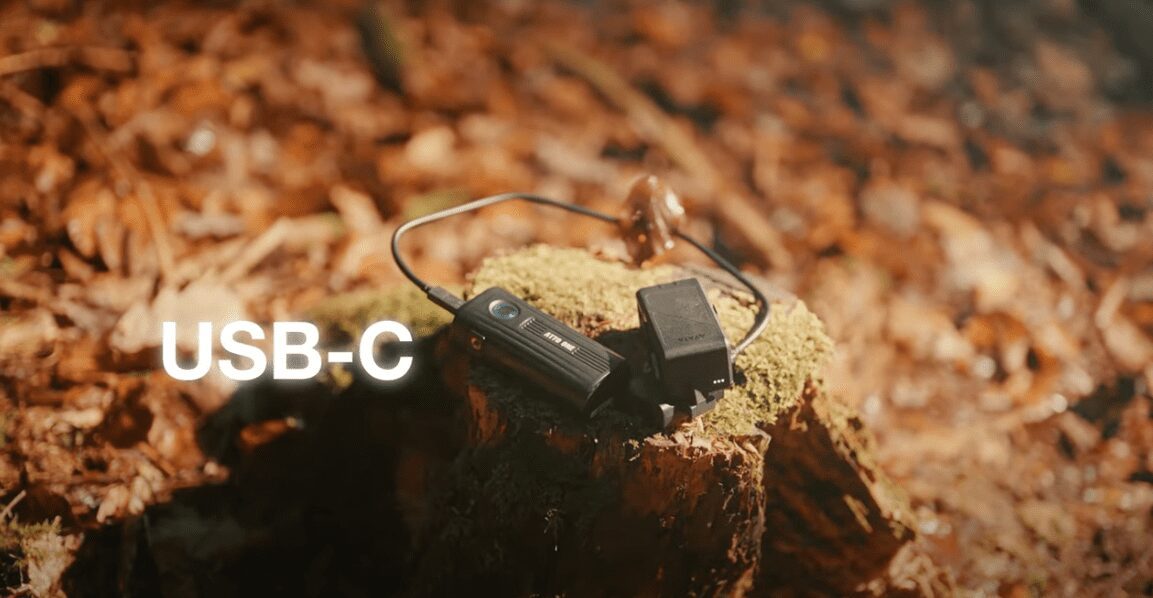

Due to its compact size, the ATTO ONE is perfect when setups need to be as compact as possible. It features a barrel DC socket with 7.7V output, USB-A and a USB-C socket.

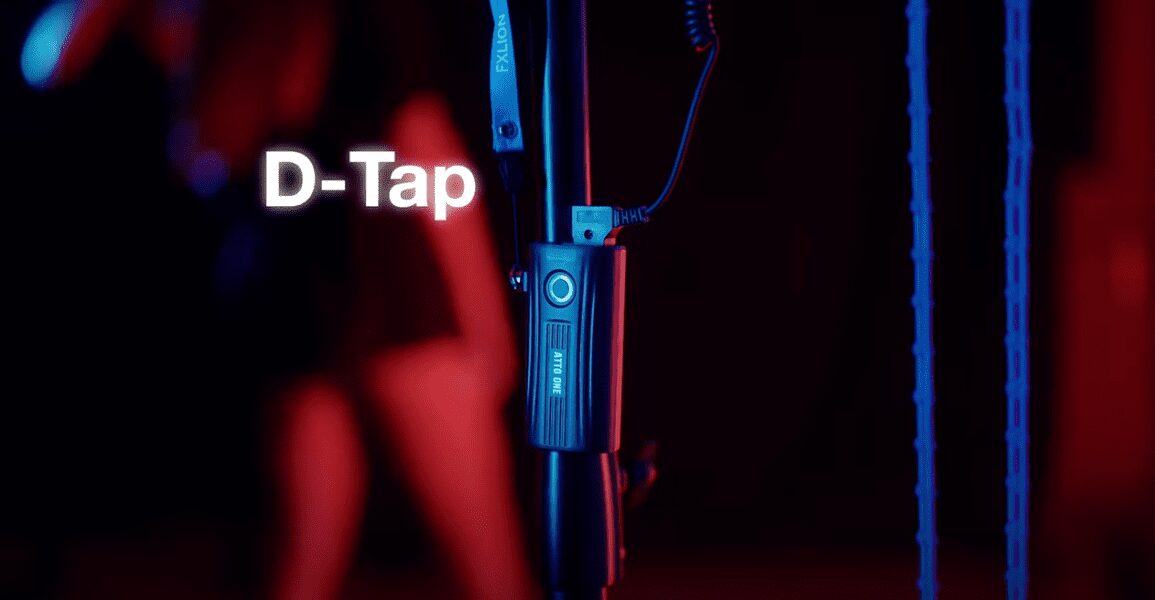

On the side there is also a D-Tap socket available.
On the back and on the side you can find a 1/4” thread for use with camera rigs or any other rig. You can only use USB-Chargers for charging. The D-Tap and other sockets are only outputs. It has a built-in protection circuit for protecting itself as well as all connected electronic devices.
There will be an aluminum holder available which the battery can just be slid into. It is a great enhancement, especially for gimbals and camera rigs.
A four level LED status indicator shows the capacity status as well as if the battery is being charged or discharged.
ATTO ONE Specs
- Capacity：5.0Ah/7.4V /37Wh
- USB-A: 5V/2A
- USB-C: 5V/3A 9V/3A 12V/3A 15V/3A 20V/2.2A
- D-Tap: 12V/3A（Max）
- φ2.1 DC：7.4V/5A（Max）
- USB-A+USB-C+D-Tap+φ2.1DC：74W（Max）
- 4 channels can work at the same time, total output is 74W(Max)
- Charge: only by USB-C,5V/3A 9V/3A 12V/3A 15V/2A 20V/1.5A
- Indicator: 4-Level LED indicators
- Dimension：50.7mm(L)*35mm(W)*104.5mm(H)
- Weight：220g
- 1/4 inch fixed thread: 1x horizontal / 1x vertical
