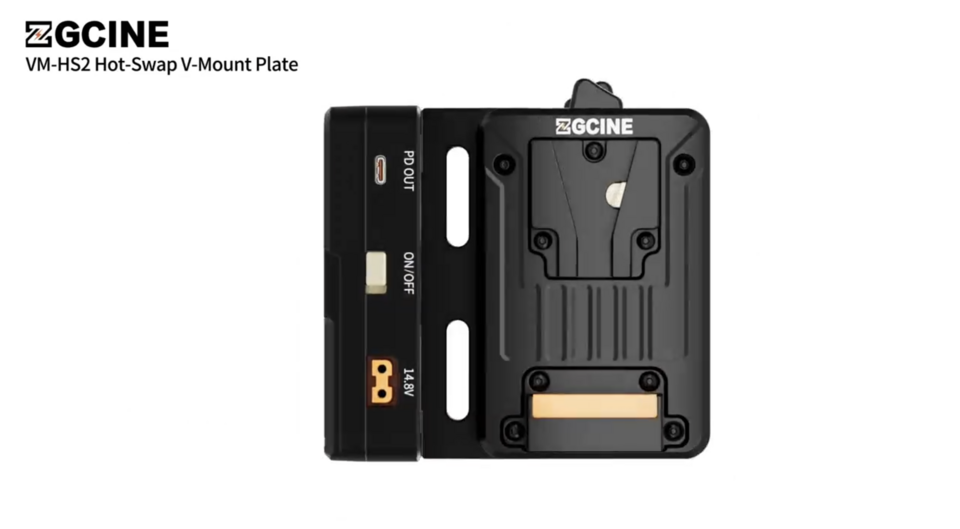

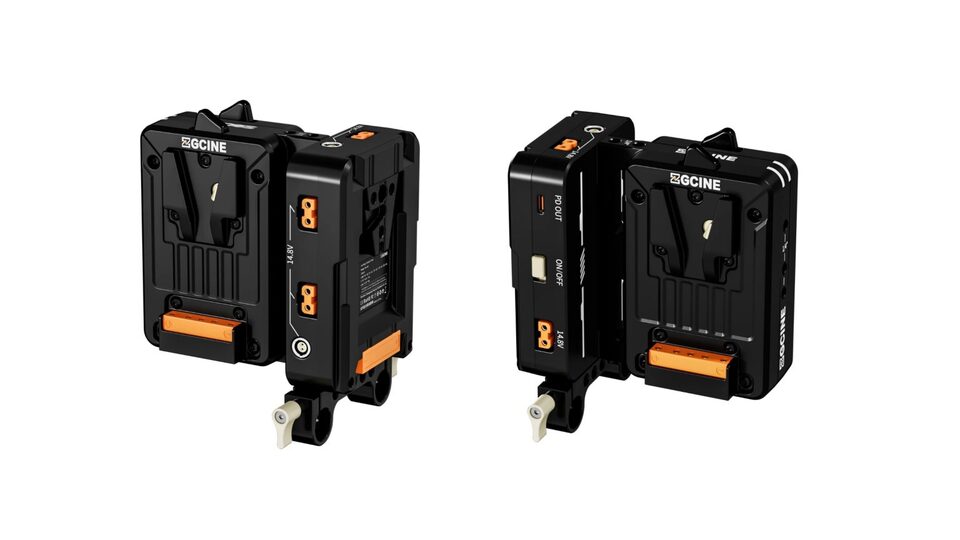

ZGCINE VM-HS2: Affordable Power Solution for Cinema Cameras

The ZGCINE VM-HS2 Hot Swap/Shark Fin Dual Micro V Mount Battery Plate is a cost-effective power solution designed for small digital cinema cameras and mirrorless hybrids.

This device allows for battery hot-swapping, ensuring continuous power to the camera and its accessories, which is beneficial during long shooting sessions.

Key Features
  • Hot Swapping Capability: Enables continuous power by allowing battery changes without powering down the equipment.
  • High-Power USB-C PD Output: Offers up to 100W via USB-C PD, supporting various power profiles.
  • Multiple Output Interfaces: Equipped with several outputs including USB-C, LEMO 2-pin, D-Tap, and BP for extensive accessory compatibility.
Output Specifications
  • USB-C1 PD Output: Ranges from 5V/2.4A to 20V/5A.
  • Dual LEMO 2-Pin Outputs: Each provides 14.8V at 10A.
  • Four D-Tap Outputs: Each supplies 14.8V at 10A.
  • One BP Output: Delivers 14.8V at 10A.

The variety of outputs allows the VM-HS2 to power numerous accessories simultaneously.

Mounting Options

The VM-HS2 can be attached to any standard V-mount plate. For cameras that do not have a V-mount configuration, the battery plate can be mounted using 15mm rods.

Package Contents

The product package includes:

  • 1x VM-HS2 unit
  • 1x USB-C E-mark cable
  • 1x 15mm Rod Clamp
Pricing and Availability

The ZGCINE VM-HS2 Hot Swap/Shark Fin Dual Micro V Mount Battery Plate is currently available for purchase at a price of $179 USD.

News source: https://zgcine.com/products/vm-vp1-kit1-v-mount-battery-plate-%E7%9A%84%E5%89%AF%E6%9C%AC

https://tkt1957.com/event/broadcasting-cinema-pro-av-2024-post-nab/
